Bench-Scale Shake Tables
Information
- High performance & cost effective solution in dynamic behavior tests & earthquake simulation.

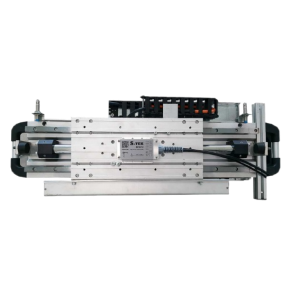

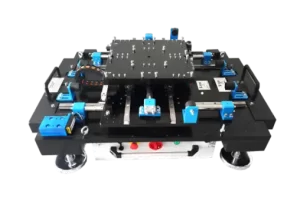

- S-TEK XY Shake Table is a high power testing
- Environment that can simulate high
- Accelerations in high frequency via
- Powerfull lineer motors. It has three linear
- Motors, two of them operate in parallel to
- Actuate the x axis, while a single motor is
- Used to actuate the y axis.
Main Features
- Single or Dual-axis operation
- Clean and low maintenance
- Turnkey and easy-to-use
- Linear motors for reliable and quiet operation
- Extensive data acquisition and control capability
- Easy integration of your structures, sensors and actuators
- Supports scaling and playback of earthquake data
- Integrated safety features and limits
- Complete, cost-effective turnkey systems
Technical Specifications
- 230 VAC Integrated Power System
- All in one system. (No need to a special PC, controlled via ethernet)
- Shake table overall dimensions (L x W x H in cm) : 100X80X60,
- Can be configured upon request & test requirements.
- Stage dimensions/payload area (L x W in cm) : 40X40
- Can be configured upon request & test requirements.
- Shake table mass: 300 + 40 kg, Can be increased or decreased upon request & test requirements.
- Maximum travel : ±15 cm (x), ±15 cm (y)
- Maximum payload at 1.0 g¹ : 100 kg
- Can be increased upon request & test requirements.
- Maximum acceleration with 100 kg payload¹ : 1.0 g (x), 1.0 g (y)
- Operational bandwidth¹ : 0 – 50 Hz (x), 0- 50 Hz (y)High performance & cost effective solution in dynamic behavior tests & earthquake simulation.
