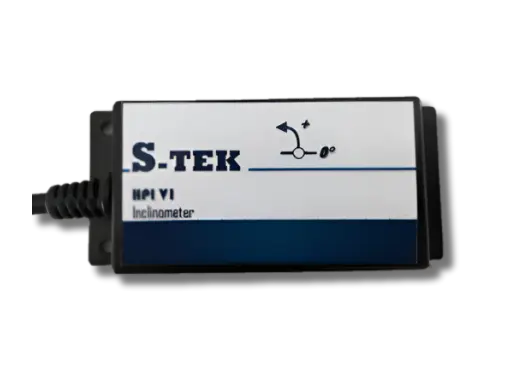

SH-Inclinometer
Information
- ±0.03° accuracy (0-90°), ±0.05° accuracy (0-360°)
- 0.005° resolution
- 0-360° range in a single axis
- Temperature compensated from 0°C to 70°C
- Digital noise filter in sensing tilt angle
- High precision sensing angle with microelectromechanical sensors
- Two axis is also available * (HPI-V2)
Communication Interfaces
- RS485/RS422 serial communication interface
- RS232 serial communication interface
- CAN communication interface
- Multiple inclinometers can be networked on the same communication channel via RS485/RS422 communication interface,
- RS485/RS422 communication interfaces supports up to 500m
- Instant access to all real time data and device settings via user interface software
- Modbus RTU communication protocol
Other Features
- Reports temperature
- 9-30V DC power input
- Power input protection
- IP67 special box, special epoxy coating
- Storage temperature : -40 / +85 °C
- Operating temperature : -20 / +70 °C
- Optional USB external flash
- IP67 aluminium case, Working temperature: -40 / + 80 C - Storage temperature: -40 / +85 C
HPI User Interface Software Features
- Direct connection to sensors: Serial (RS232 RS422)
- Real time access to all data, Examine inclination data on graphics in detail
- Data, Text File format), Display of recorded data
Ordering Information
- Sensor Version – Communication – Relay&Sync Input – Power – Cable Length – Connector – Converter – Protocol
- HPI-V1 – RS422 – NO – DC – 3M – NI – RS232USB – CanOpen
- Communication options: RS422, RS232, USB (Mini – Type B)
- Relay Output & Sync Input: NI (Not Installed), RLY (Relay Output), SYNC (Sync input), RLYSYNC (Both)
- Power Choice: USB (USB Type A Jack to power from PC or USB Adapter), DC (DC input jack for 9-30V)
- Cable Length: 1M, 2M, 3M, 4M, 5M → customer choice (M: meters)
- Connector: DB9 (DB9 connector), NI (Not Installed, Without Connector)
- Converter: RS422USB (USB to RS422 High Speed Converter), RS232USB, NI (Without Converter)
- Protocol : MODBus, J1939, CanOpen
Order Examples
- HPAS-V1-RS422-NO-USB-5M-DB9-RS422USB-MODBUS
- HPAS-V1-RS232-NO-DC-3M-DB9-RS4232USB-CANOPEN
