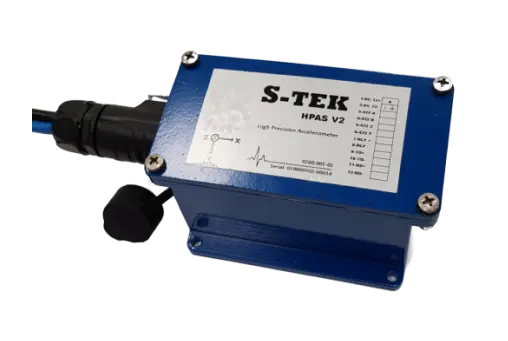

SH-Next Generation Accelerometer
Information
- Two separate mems measurement - hybrid technology
- Excellent long-term stability with hermetic mems structure
- 3 axis acceleration measurement (X-Y-Z)
- Very low noise level (1 μg√Hz) (± 2g measurements)
- < 1ug RMS DC level noise
- ± 2g / ± 4g / ± 8g measurement range (User programmable)
- Optional upto ± 20g in high frequency version
- 24-bit sampling, Non-linearity +-0.1 %FS
- 100 / 200 / 400 sps data transfer (User programmable)
- Optional 64 ksps in high frequency version
- Lowpass and highpass digital filters
- Frequency response: DC to 500 Hz, *Optional up to 20 KHz
- Optional additional precision geophone support *
Inclination Information
- 2 axis inclination measurement (Roll - Pitch)
- Angle output resolution 0.0055°/LSB
- Ultra-low 0.001 °/√Hz noise density
- Proven capacitive 3D-MEMS technology
- ±3 & ±90 Measurement Range Modes
- Communication & Other Interfaces:
- 100 Mbit ETH interface, POE, *Optional GSM, *Optional GPS
- CAN, RS422 or RS232 serial communication (256 kbps or 512 kbps) (optional
Other Features
- Self Test feature, Temperature Sensor, Optional adjustable relay alarm output
- Time synchronization input in multiple sensor recording. (1ms resolution)
- Ethernet network offline time synchronization feature
- Very low noise level (1 μg√Hz) (± 2g measurements)
- 5-30V DC industrial power input and power input protection, POE
- Internal flash for 120 seconds internal earthquake recordings
- Optional USB external flash
- IP67 aluminium case, Working temperature: -40 / + 80 C - Storage temperature: -40 / +85 C
